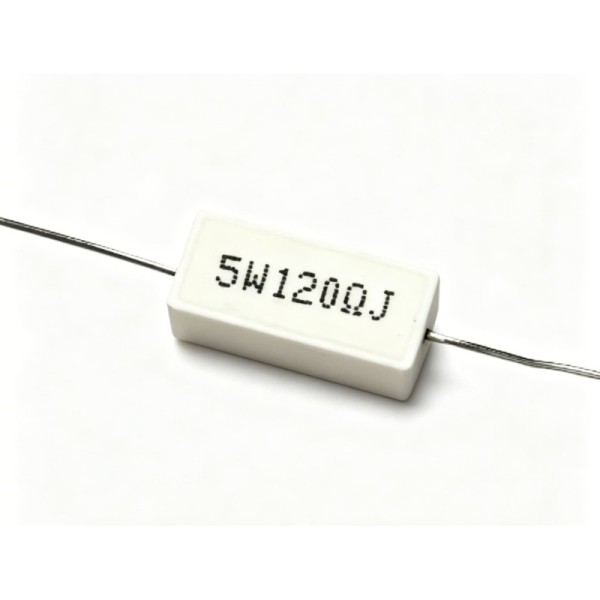

Heated Cement Wire Wound Resistors 1500V High Temperature Ceramic Cement Resistor

Name: Heated Cement Wire Wound Resistors 1500V High Temperature Ceramic Cement Resistor
Brand: TYOHM
Price: 1 USD

Wholesale Heated Cement Wire Wound Resistors 1500V High Temperature Ceramic Cement Resistor from china suppliers

Brand Name : TYOHM

Place of Origin : China

MOQ : 1K

Price : Please contact us for details

Payment Terms : T/T

Supply Ability : Depending on the specific circumstances, it generally takes 5-7 work days to complete

Delivery Time : 7-10 work days

Packaging Details : T/B

Temp. Coeff. : ±300pmm/°C

Operating Temperature : -55℃ ～ +275℃

Withstand Voltage : AC 1500V / 1 minute

Short-Term Overload : 10 times rated power for 5 seconds

Load Life in Humidity : Overload rated voltage or Max, working voltage for 1000 hours at the 40±2 °C and 90~95% relative humidity

Nonflammability : 16 times rated power for 5 minutes

Contact Now

Heated Cement Resistor (JRX Series)

Product Introduction

The heating type cement resistor is a high-performance device that integrates resistance and heating functions. The product employs a highly stable resistance wire winding structure and is encapsulated in a high-temperature resistant insulating cement shell, possessing excellent thermal conductivity and mechanical strength.

Its robust structural design and uniform heat dissipation characteristics enable it to operate stably for extended periods under high power loads and harsh environments. The JRX series can be used not only as current-limiting and voltage-dividing resistors but also as electric heating elements, widely meeting the diverse needs of industrial equipment and household appliances in various application scenarios.

Product Parameters

Item	Specification
Series	JRX Heated Cement Resistor
Power Rating	Typical power range 5W～50W depending on model
Tolerance	±5%, ±10%
Insulation Resistance	≥100MΩ (DC 500V)
Temperature Coefficient	Low temperature drift characteristic, better than ±400ppm/°C
Material	High-insulation inorganic ceramic housing
Internal Structure/Construction	Iron cap end seal, high-temperature potting compound, fiberglass core support

Heated Cement Wire Wound Resistors 1500V High Temperature Ceramic Cement Resistor

Performance Characteristics

Excellent Heat Resistance and Stability

The JRX series utilizes a high-temperature sintering process and an inorganic insulation filling structure, resulting in excellent heat resistance and shock resistance. The resistor element can operate continuously in high-temperature environments without failure, ensuring long-term stable output.

High Insulation and Safety

The outer shell uses ceramic insulation material with an insulation resistance exceeding 10MΩ, effectively preventing leakage and short circuits. The internal design employs a high-temperature resistant iron cap and fiberglass skeleton, providing good mechanical strength and shock resistance.

Uniform Heating and Reliable Heat Dissipation

The resistor wire structure is rationally designed, resulting in uniform heat distribution and stable temperature rise, suitable for both continuous heating and intermittent operation.

Heated Cement Wire Wound Resistors 1500V High Temperature Ceramic Cement Resistor

Typical Applications

The JRX series is widely used in electric heating devices, power supply equipment, household appliances, lighting systems, motor brakes, thermostats, and industrial instruments, among other fields. Its high temperature resistance, high stability and insulation properties make it an ideal choice for applications requiring current limiting, energy dissipation and thermal control.
