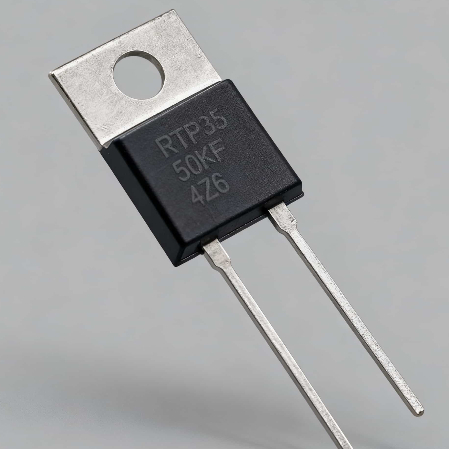

RTP35 Non Inductive Resistors 35W Power High Power Wire Wound Resistor

The RTP35 series of power non-inductive resistors utilizes a high-performance TO-220 package, offering excellent heat dissipation and stable electrical characteristics. With a heatsink installed, the rated power reaches 35W; without a heatsink at room temperature (25°C), the rated power is 2.5W.

Its non-inductive design effectively eliminates the influence of parasitic inductance on high-frequency circuits, ensuring signal purity and fast response, making it particularly suitable for electronic systems with high precision and stability requirements. RTP35 resistors are compact, easy to install, and maintain excellent electrical reliability even under high power density conditions.

The RTP35 resistor features a highly insulated metal substrate and molded plastic housing, enhancing mechanical strength and environmental resistance while ensuring safety and reliability. Its non-inductive structure is particularly suitable for high-frequency and pulsed load applications, guaranteeing undistorted output waveforms. It can be mounted to a heatsink with a single screw, achieving high power density and excellent thermal conductivity. The insulation design between the conductive layer and the metal substrate provides excellent electrical isolation, effectively preventing leakage or interference problems.

• RF power amplifiers and buffer circuits
• Switching power supplies and regulated power supply modules
• Automation controllers and uninterruptible power supplies (UPS)
• Low-energy pulsed loads and power regulation circuits
